Ultra-Quickstart!

Preface

This tutorial assumes you already have Nextflow and Docker installed.

Create a SocialGene Database

Pull the latest version of SocialGene's Nextflow workflow

nextflow pull socialgene/sgnf

Run the Nextflow pipeline

Assign outdir and outdir_download_cache paths below with the paths you want the results to be placed into. Open bash or whatever shell you use, run the commands, and (fingers-crossed) watch the magic happen.

shell

outdir='/tmp/socialgene_data/ultraquickstart'
outdir_download_cache='/tmp/socialgene_data/cache'

nextflow run socialgene/sgnf \
    -profile ultraquickstart,docker \
    --outdir $outdir \
    --outdir_download_cache $outdir_download_cache \
    --max_cpus 4 \
    --max_memory 4.GB \
    -resume

Note: some parameters have changed since video below was recorded

Nextflow Pipeline Execution Time

The length of time the pipeline takes relies heavily on the number of cores used and disk speed, so estimates are difficult. On my work desktop (AMD® Ryzen 9 3900xt 12-core processor) the ultraquickstart config (two genomes) will run start-to-finish in a couple of minutes. For these small runs, downloading Docker images and PFAM can be the longest step if they aren't already cached. MMseqs2 and DIAMOND run times are dependent on the number of input proteins, while HMM annotation depends on both the number of input proteins and number of HMM models.

Annotating all Micromonospora genomes (~200) with multiple HMM databases (e.g. PFAM, TIGRFAM, etc.) may take a couple hours. On our server (100 logical cores | 1 TB RAM ) (while also under heavy use by others) using slurm and maximum of 40 logical cores, a couple thousand Streptomyces genomes ran through in just under 24 hours.

Launch the database

Notice that the sg_neoloc path below is the $outdir path from above plus /socialgene_neo4j (the newly created neo4j database directory)

shell

sg_neoloc='/tmp/socialgene_data/ultraquickstart/socialgene_neo4j'

docker run \
    --user=$(id -u):$(id -g) \
    -p7474:7474 -p7687:7687 \
    -v $sg_neoloc/data:/data \
    -v $sg_neoloc/logs:/logs \
    -v $sg_neoloc/import:/var/lib/neo4j/import \
    -v $sg_neoloc/plugins:/plugins \
    -v $sg_neoloc/conf:/var/lib/neo4j/conf \
        --env NEO4J_AUTH=neo4j/test12345 \
        --env NEO4J_PLUGINS='["apoc", "graph-data-science"]' \
        --env NEO4J_dbms_security_procedures_unrestricted=algo.*,apoc.*,n10s.*,gds.*, \
        --env NEO4J_dbms_security_procedures_allowlist=algo.*,apoc.*,n10s.*,gds.* \
        --env NEO4J_server_config_strict__validation_enabled=false \
        --env NEO4J_server_memory_heap_initial__size='4G' \
        --env NEO4J_server_memory_heap_max__size='4G' \
        --env NEO4J_server_memory_pagecache_size='3G' \
        --env NEO4J_server_jvm_additional='-XX:+ExitOnOutOfMemoryError' \
    neo4j:5.16.0

If you get some error about ports being unavailable/used, you'll want to change the line -p7474:7474 -p7687:7687. The first number before the colon is what you'll change, the new number(s) will be what you use for the address below (under "Look at what you've made!"). For detailed info about port configuration in NEO4J see: https://neo4j.com/docs/operations-manual/current/configuration/connectors

Look at what you've made!

Open an internet browser and go to the url: http://localhost:7474.

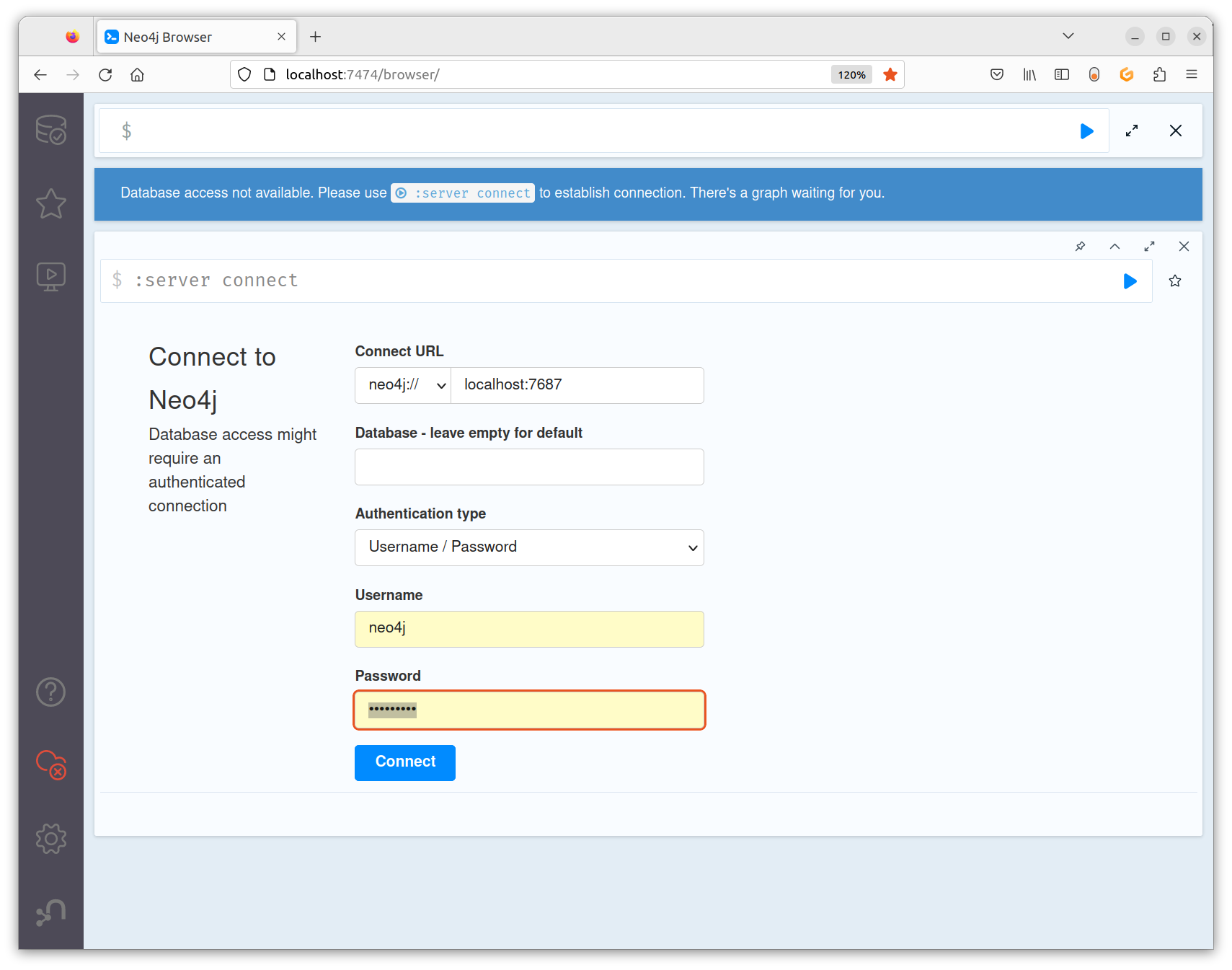

You should see a login screen:

The username/password were set inside the docker run command (--env NEO4J_AUTH=neo4j/test12345). In this case the username was neo4j and password was test12345.

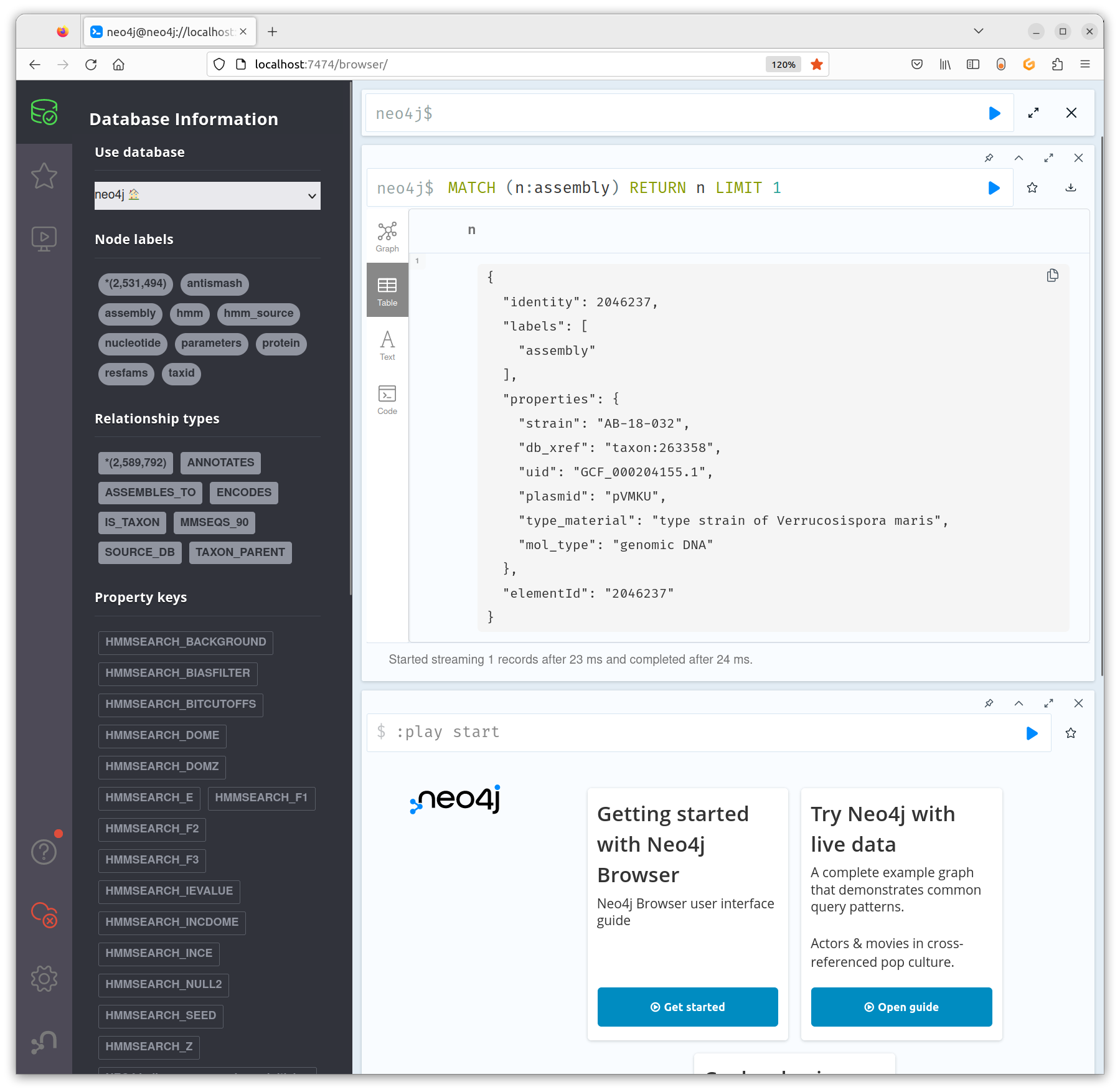

After authenticating you should be able to see the database entries and start querying the database:
